Description
Electrix Warpfactory Vocooder. Condition is "Used".
lectrix Warp Factory
The Ultimate Vocoder (1999)
Rackmount Midi digital Vocoder with DJ live features released at the end of the nineties.
The Warp is a pretty simple vocoder with many real-time controls that be used with either internal carrier (oscillator) or external one.

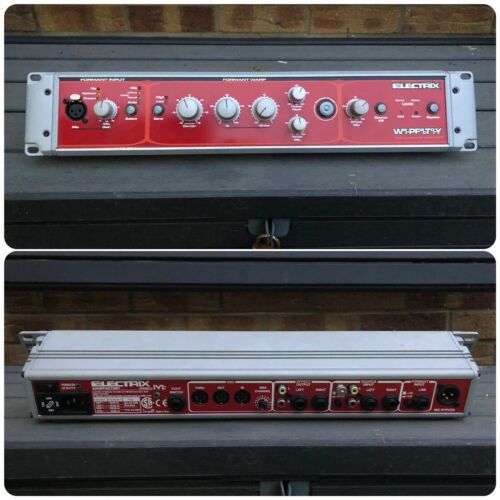

EFFECT RACKMOUNT MODULE intuive panel: no display but only 5 buttons and 7 big knobs - sounds like "tweak me, tweak me!".
panel terminal connectors:
- Midi interface
- Midi channel selector
- RCA stereo + jack main out
- RCA stereo + jack signal input
- switch for input between phono and line impedance / RIAA
- formant input with 10 /+4 gain switch.
- pedalswitch input for bypass.
Front panel terminal connectors:
- XLR micro input
VOICE hardware machine based on physical modelling algorithm instead of traditional multiband analog filtering. The vocoder principle is based on 2 basic A-B elements:
- Source is the sound to be shaped
- Formant is the signal to shape the source.
The interface is split into 3 macro sections:
- Formant input (1)
- Formant Warp (2)
- Mixing section (3).
structure
edit FORMANT INPUT first section allows to choose the FORMANT sources and the relative gain optimization, according to 3 LED-meters: green and orange indicate optimum source levels while red means that input is overloaded. Special LINE ES source mode simulates the letter sibilant (like "S") with a gated white noise aimed to preserve speech intelligibility.
formant input
FORMANT WARP this section models the signal with various functions:
- BAND optimizes the process for either high or low frequencies - e.g. drum loops
- GENDER changes harmonic content of the formant without chancing the fundamental pitch of the musical source
- Q is the amount of filter resonance
- ORDER sets the filter algorithm 's resolution and precision
- ROBOT PITCH is an internal oscillator with variable frequency
- NOISE amount of white noise for sibilance control
- FREEZE BUTTON temporally freezes the formant shape until it is released.
