Description

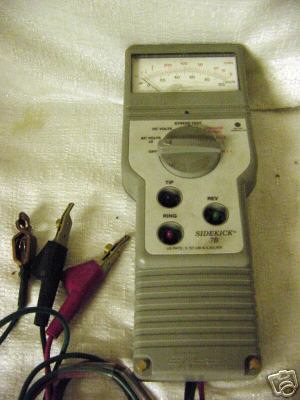

Tempo Sidekick 7B
Here is some Web Info for you
The Sidekick 7B is the test set used in every major telephone company in the United States to troubleshoot twisted pair applications. This lightweight, hand-held meter quickly and accurately uncovers intermittent troubles that other test sets can't detect. Since the introduction of the patented Stress Test and Leakage Test in 1991, the Sidekick has become a benchmark in communications technology. Technicians now have the versatility to identify faults in locations ranging from outside plant cable to inside wiring, and from closures to connecting blocks, without sacrificing standard features,e.g., AC/DC, VOM, Kick Meter, they have come to rely on. The versatile Sidekick 7B is used throughout the telephony industry, including LAN/WAN, Private Networks, and BICSI applications.
STRESS TEST The Stress Test reads the audible noise produced on a faulted pair that is stressed by a 90 dBrn longitudinal excitation. The Stress Test determines the capacitive and series resistance ba lance characteristics of twisted pair at any point along the pair. It is capable of identifying DC resistive or capacitive imbalances undetected by other subscriber loop tests. The Stress Test is also highly effective in identifying imbalances produced by series resistance opens (high joints).
LEAKAGE TEST The Leakage Test detects intermittent resistance faults that do not appear under normal VOM tests. When a faulted pair is taken out of service, galvanic action forms an insulating oxide layer over the faults. When returned to service, such pairs develop "noisy static" in a relatively short period of time. The Leakage Test uses 135 Volts to "punch through" the oxide layer and reveal the fault.
On Line New Price
Sidekick 7B Test Set
$1049.50
Sidekick 7B Features:
- Determines the stressed noise susceptibility of dry and working pairs
- Measures resistance, AC/DC volts, and capacitive kick
- Provides tone for twisted pair or crossed conductor identification
- Minimal drying effect in all ranges
- Analog meter provides instant readout
- Handset (buttset) terminals
- Field replaceable leads
- Single hookup for Tip-Ring, Tip-Ground, and Ring-Ground testing
- Simplex tone
- Automatic shut-off
- Low Battery warning indicator
- Reduces repeat service calls
- Eliminates service interruptions
- Works on any twisted pair application
- Resistance: Rx1: Reads 0 to 2000 ohms
Rx1K: Reads 0 to 2 Mohms - AC Voltage: 0 to 200 AC Volts
- DC Voltage: 1 to 100 DC Volts
- Stress Test: 0 to 82 dBrnC
- Leakage Test: Rx10K: Reads 0 to 20 Mohms
- Operating Temperature: -20°C to +60°C
- Power: Four AA batteries
- Dimensions: 10.75" x 4.25" x 2.5"
- Weight: 2 lbs.
